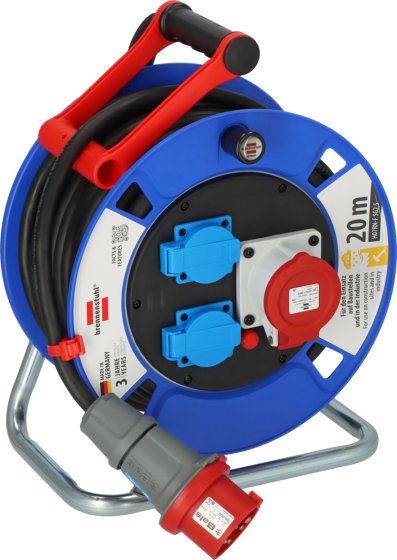

Garant CEE IP44 cable reel 20m H07RN-F5G2.5 1xCEE 400/16A, 2x230V *DK*
beskrivelse
beskrivelse
- According to EN 61316.

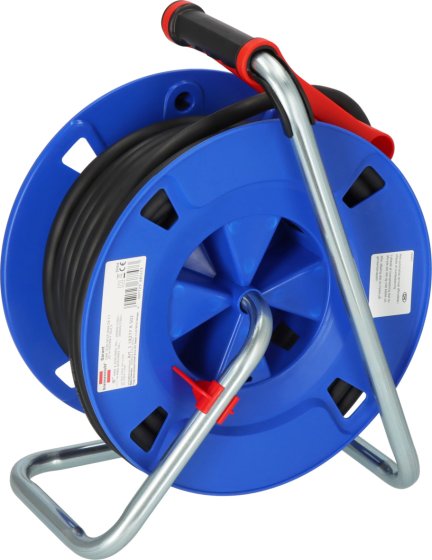

- Reel body made of special plastic on galvanised carrying frame.

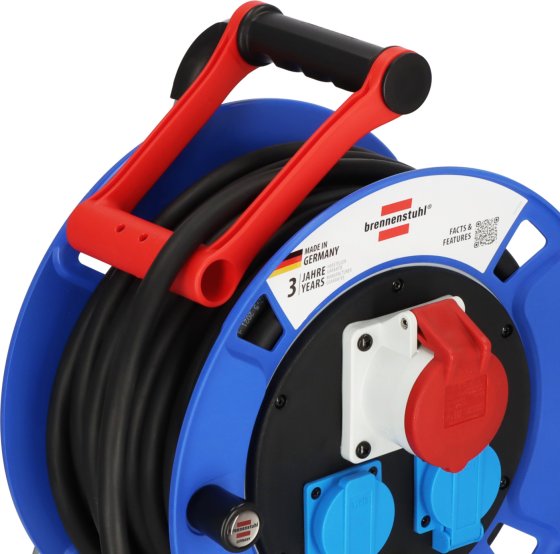

- Innovative ‘’cablepilot‘’ carrying handle for perfect cable routing. Swings on both sides for easy carrying and hanging.
- With twist handle for convenient retraction.

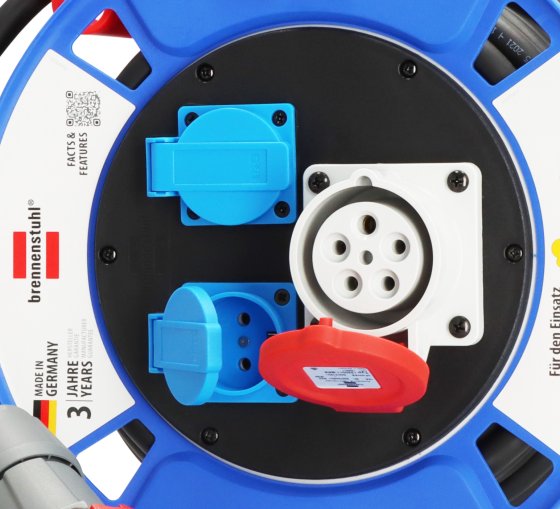

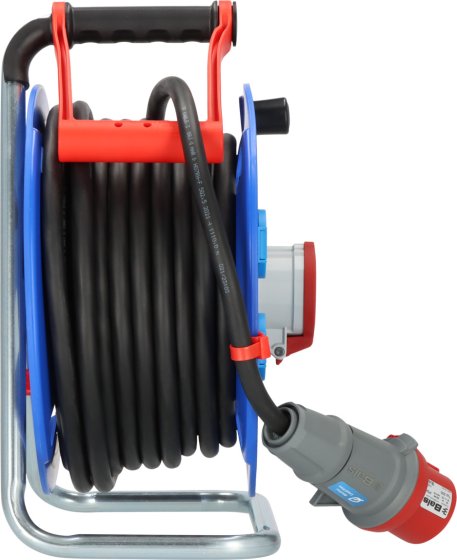

- CEE plug 400 V/16 A,
2 splash-proof 230 V protective contact sockets.
- Cable quality: RN cable, very robust and oil-resistant.
- RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704.
- Sockets with earthing contact distributed over separate phases.
- With 3-pole safety cut-out and overheating protection.
- With drum brake.
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts.
For use on construction sites
- For use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
Protected against foreign bodies and splash water
- Protection against splash water from all directions
cablepilot
- Integrated cable guide: Prevents slipping, guides the cable when winding and ensures even distribution on the drum
- Practical carrying handle with dual function: For convenient transport or for hanging up the cable reel
- Flexible handling: Can be wound from both sides, plus plug garage for safe storage of the plug
tekniske data
tekniske data
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3000 W
- Capacity in coiled state 400V 16A: 2400 W
- Capacity in uncoiled state 400V 16A: 8000 W
- Usage: Outdoor
- Housing material: Plastic
- Area of use: Outdoor
- Number of earthed socket outlets:
- Number of CEE socket outlets: 1
- With CABLEPILOT: Yes
- With plug storage: Yes
- With Bretec: No
- Cable quality: Rubber-Neoprene
- Cable length: 20 m
- Cable designation: H07RN-F 5G2,5
- Additional cable length: 0 m
- Reel diameter: 300 mm
- With carrying handle: Yes
- Degree of protection (IP): IP44
- Width of product (without packaging): 30 cm
- Weight of product (without packaging): 7,77 kg
- Height of product (without packaging): 39,50 cm
- Length of product (without packaging): 18,50 cm
