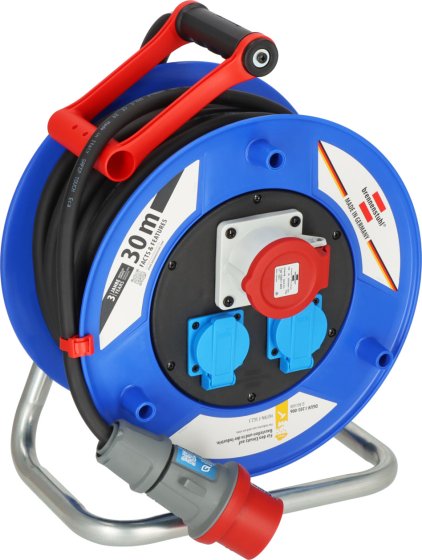

Garant CEE 1 IP44 cable reel for site & industry 30m H07RN-F 5G2,5 *DK*
beskrivelse
beskrivelse

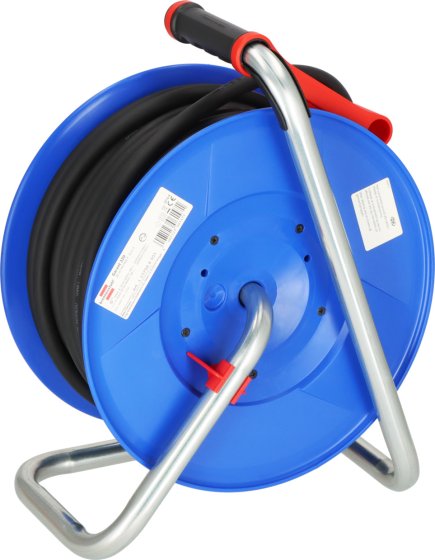

- Reel body made from special plastic fitted to a galvanised steel tube frame.
- Innovative and ergonomic cable guide handle "cable pilot" for perfect cable-management during winding. Handle commutes on both sides and allows easy carrying and cable storage. For right and left handed easy to rewind.
- Category 2 (K2) equipment: Use for rough operation with high mechanical, physical and chemical effects.
- RN cable is approved to exacting site standards as per VDE 0100 part 704.

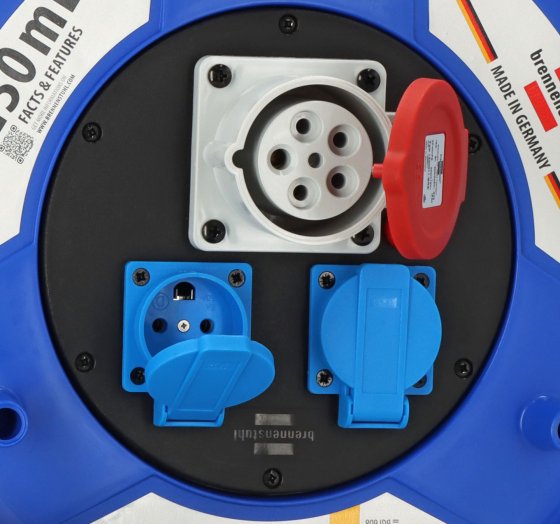

- 1 CEE-plug 400 V/16 A,
- 1 CEE-socket 400 V/16 A,
- 2 water-jet protected sockets 230 V.
- Earthed sockets connected to separate phases.
- With 3-pin safety cut-out and thermal overload protection.
- Danish Standard.

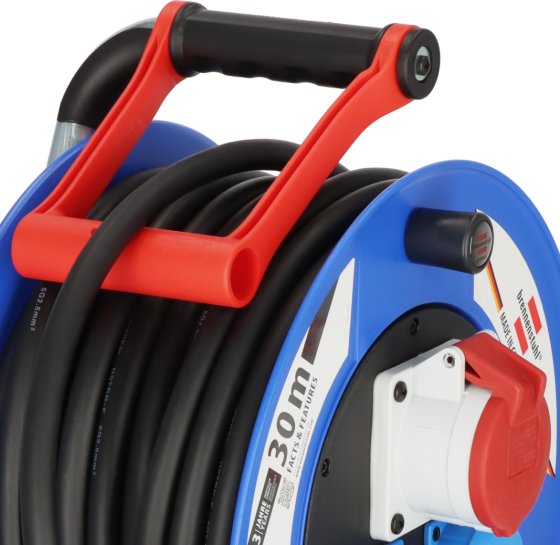

Cablepilot
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug

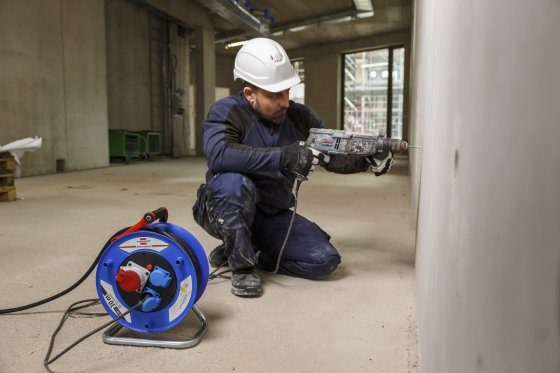

For use on construction sites
- For use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use.
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts.
Protected against foreign bodies and splash water
Protection against splash water from all directions.
tekniske data
tekniske data
- Cable designation: H07RN-F 5G2,5
- Cable length: 30 m
- Cable quality: Rubber-Neoprene
- Capacity in coiled state 230V: 1800 W
- Capacity in uncoiled state 230V: 3000 W
- With Bretec: No
- Reel diameter: 320 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Industry/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets: 1
- Number of earthed socket outlets:
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Width of product (without packaging): 32 cm
- Weight of product (without packaging): 11,01 kg
- Height of product (without packaging): 42 cm
- Length of product (without packaging): 25 cm
- Additional cable length: 0 m
- Capacity in coiled state 400V 16A: 4200 W
- Capacity in uncoiled state 400V 16A: 8000 W
Downloads
Downloads
Alle produkter er med forbehold for tekniske ændringer
